Mahlkonig EK43

589 Rappahannock Drive WhiteStone Va 22578

Tel (804) 435-5522 Toll Free (866) 244-1578 Fax (703) 991-7133

www.coffeelabequipment.com

Technical Sales & Support

Telephone (804) 435-5522

Toll Free (866) 244-1578

Hours 9 AM - 6 PM EST M-F

TECHNICAL DATA

Grinding capacity – fine to medium*

Hopper capacity

Dimensions (w x h x d)

Net weight

Grinding disc diameter

Grinding disc material

1200 - 1500 g/min

2.6 - 3.3 lbs/min

1500 g 3.3 lbs

23 x 77 x 41 cm

24 kg 52.9 lbs

98 mm 3.86 inch

Cast Steel

Operation:

• Bags are simply clamped into the bag holder – no need to

hold bags during the grinding process

• The cleaning of the spout is simply done with the bag holder

• Grind adjustment to the desired fineness is easily done by

turning the grind adjustment knob

• The hoppers can be locked with a slide plate to enable an

easy exchange of hoppers with different grinding goods

EQUIPMENT FEATURES

Bag holder clamping

Finger protection / hopper magnet

Hopper model

Turkish grinding

Filter- & Espresso grinding

Other grinding goods

ELECTRICAL

Voltage / frequency / phases

Rotations / minute

Motor rating

Overload protection

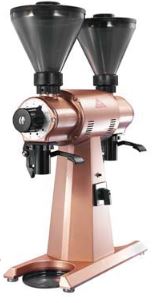

EKK 43:

• Two independent grinders for different applications

– saves space, time and costs

• Grinding of other goods, such as spices, grains,

poppy seed and linseed is possible

• Combined selection- and on/off-switch makes

the operation easy

• The larger hoppers (optional) enable the fast

grinding of larger volumes

TECHNICAL DATA

Grinding capacity – fine to medium*

Hopper capacity

Dimensions (w x h x d)

Net weight

Grinding disc diameter

Grinding disc material

900 - 1000 g/min

1.9 - 2.2 lbs/min

(2) 1500 g 3.3 lbs

23 x 77 x 59 cm

28 kg 61.7 lbs
