MOISTURE, PARTICLE CHARACTERIZATION, COLOR, AND SAMPLING
APPLICATION SPECIALISTS
LABORATORY GRINDERS
SAMPLER CATALOGUE
PRODUCT CATALOGUE
Key Features

Constructed of cast aluminum
Micrometric regulation
Turkish to French Press grind range
Double ventilation system
Bag shaker extension
Aluminum front regulator

Motor output 500 W
Revolutions per minute 900 rpm
Ø Burrs 98 mm
Production per second Filter 10 gr
Single Dose capacity 60 gr
Height x width x depth 622 x 252 x 328 mm
Net weight 25.4 Kg

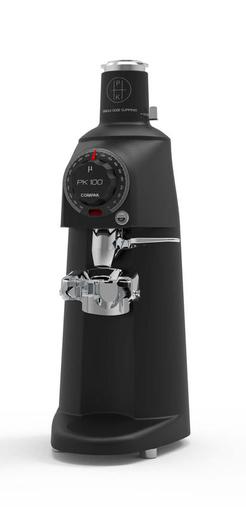

COMPAK PK100
compak pk100
1 Single dose
cupping LAB
2 Flap handle
Fixing screw
Coffee bag clamp
LAB Holder
Power switch
Front control knob
Grinding ON/OFF switch
Adjustable coffee outlet
Portafilter 10 spring clamp LAB
compak pk100
QUICK QUOTE
BROCHURE
OPERATING INSTRUCTIONS
ONLINE PRICING
visa mc
100 V
60 Hz

110 V
60 Hz

220 V
60 Hz

230 V
50 Hz

240 V
50 Hz
Electrical
Power(W)

 960


960


960


960


960
Rotational
velocity (RPM)

1100


1100


900


900


900
TECHNICAL DATA
Flat Burrs

Espresso
Grinding



Filter Grinding


Time for
one dose
(5,5gr)
Espresso
98    mm


350 gr/min
.77 lb/min


600  gr/min
1.32 lb/min




1      sec
compak pk100
Key Specifications

Motor output 500 W
Revolutions per minute 900 rpm
Ø Burrs 98 mm
Production per second Filter 10 gr
Single Dose capacity 60 gr
Height x width x depth 622 x 252 x 328 mm
Net weight 25.4 Kg
compak pk100
